Sensored brushless motor TS X812 6-Pol Car Motor

139,00 €
Recommended retail price: 139,00 €
including 19% VAT., plus shipping
  • Availability: 31 In stock (Variatonsabhängig)
  • Item no.: X-812
  • Product weight: 0,34 kg
  • Shipping weight: 0,36 kg
Order Now
Please select
  • specification Lagerbestand
Category
Manufacturer
application

Description

Sensored brushless motor TS X812 6-Pol Car Motor

for 1/8 On-&Offroad

Features

  • CNC machined AL heat sink casing
  • High efficiency 6-Pole 18 Slots brushless motor
  • Superior rotor design with insert magnets
  • High purity copper windings making maximizes conductivity
  • Powerful sintered neodymium magnet
  • High torque and light weight
  • 240 mm cable for more options
  • Dual-plug sensor for all sensored and sensorless system

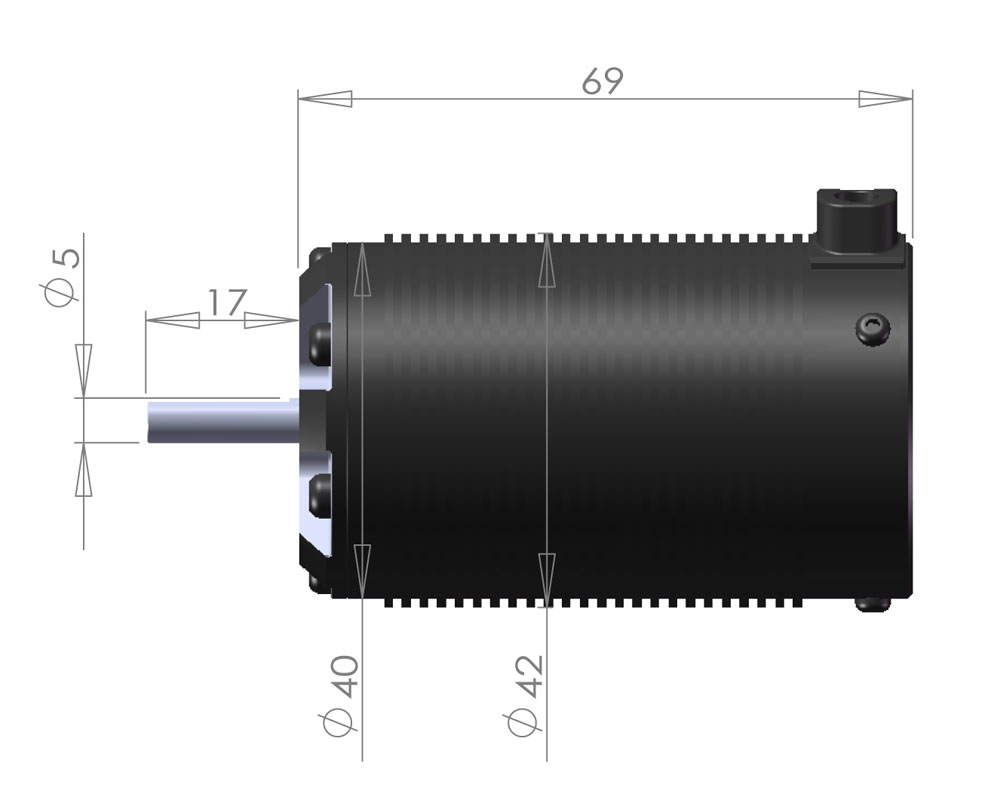

Details


Poles 6
Power 3500W
Length 69,0 mm

Ø cage

41,8 mm
Ø shaft 5,0 mm
eight 378,0 g

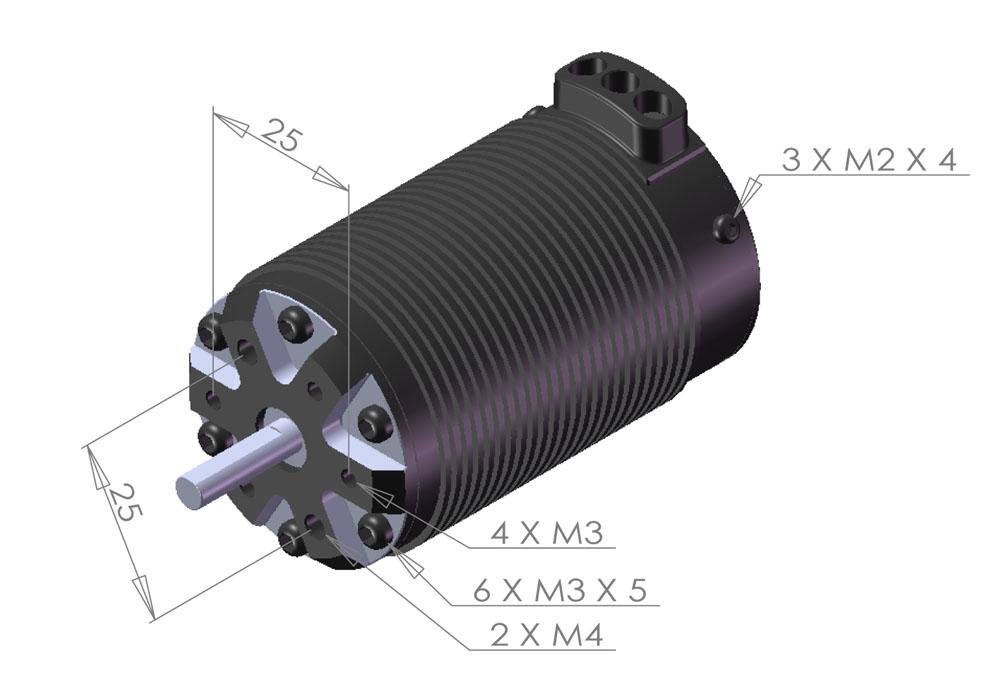

Skrews 4 x M3; 2 x M4
Hole pattern 25,0 mm
max. temperature of neodym 180 °C
Max. RPM 52.000
Recomende timing 10 - 15



Pictures

812-1
812-1
812-2
812-2
