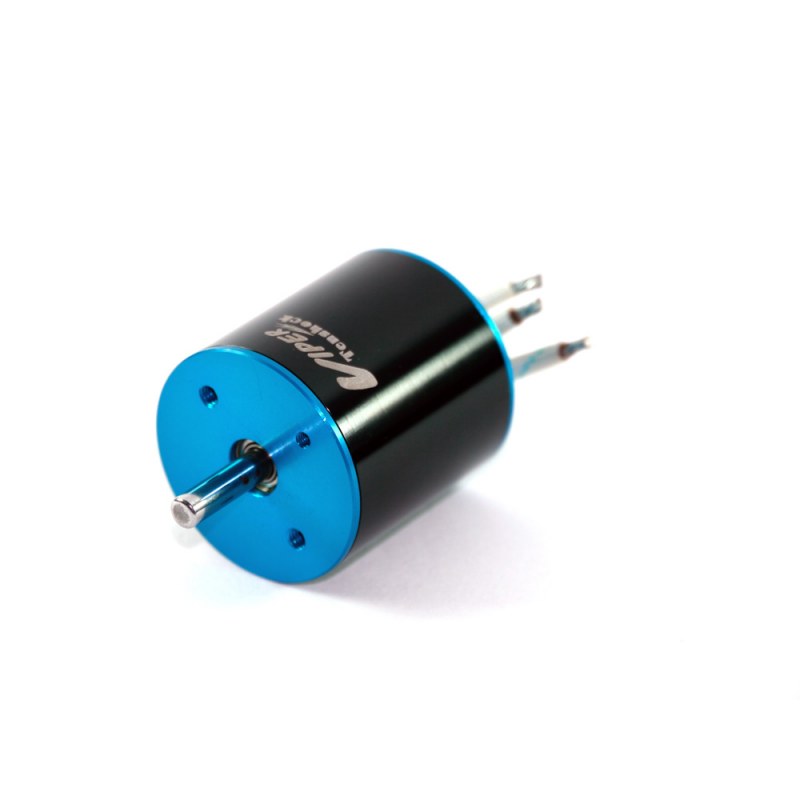

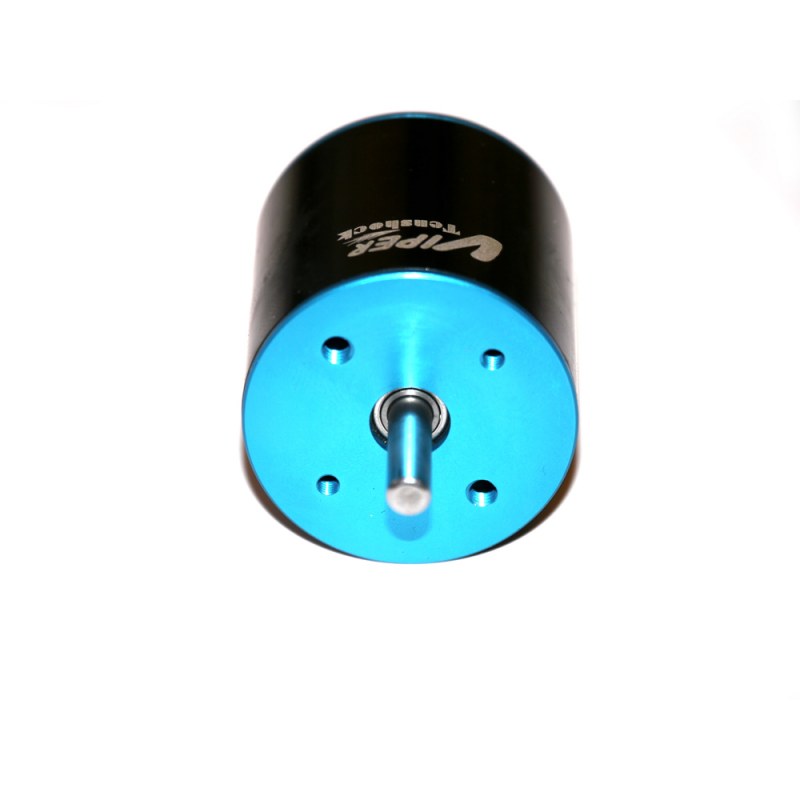

Brushless Motor TS-EZ 2220 6-Pol

starting from 89,00 €
Recommended retail price: 89,00 €
including 19% VAT., plus shipping
  • Availability: item not available
  • Item no.: TS-EZ 2220
  • Product weight: 0,18 kg
  • Shipping weight: 0,48 kg
Voraussichtliche Lieferung: Ihr Artikel wird hergestellt. Die Lieferzeit beträgt bis zu 4 Wochen.
Order Now
Please select
  • specification Lagerbestand

Description

Brushless Motor TS-EZ 2220 6-Pol

Features

  • CNC machined AL heat sink casing
  • Efficiency 6-Pole 9 Slots brushless motor
  • High purity copper windings making maximizes conductivity
  • Rotor with Kevlar armor
  • Powerful sintered neodymium magnet
  • High torque and light weight

Details


Poles 6
Power 1000 W
Length 41,5 mm

Ø cage

36,0 mm
Ø shaft 5 mm
Length shaft 14,5 mm
Weight 165,0 g
Skrews 4 x M3
Hole pattern 25,0 mm
max. temperature of neodym 180 °C
Max. RPM 54.000
Recomende timing 8 - 10
