6-Pole Sensored Brushless

09.01.2012 10:03

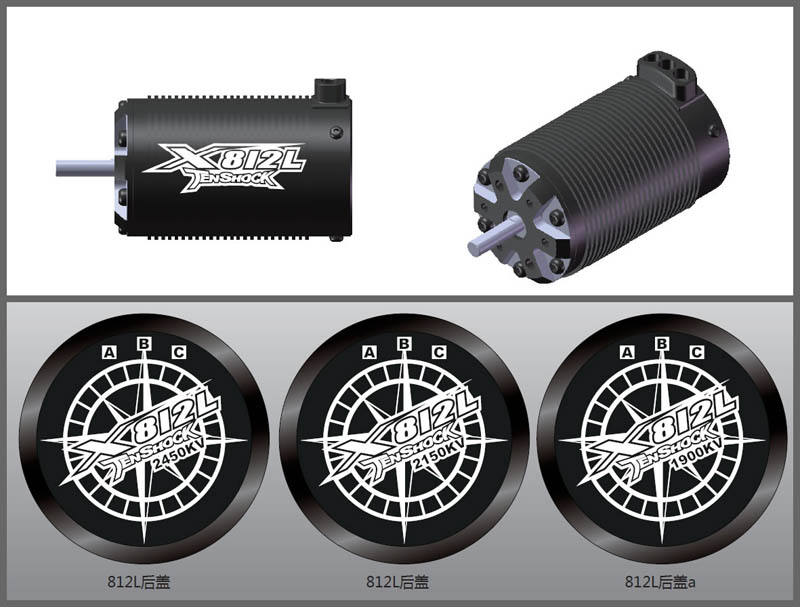

NEW  6- Pole Sensored Brushless X-812 & X 812L

Just in time for the Nürnberg Toyfair Tenshock developed the new 6 Pole Brushlesssystem for 1/8 buggy and truggy.

TS X812 &x 812L
High end sensorless brushless motor
for 1/8 Cars

Features

  • CNC machined AL heat sink casing
  • High efficiency 6-Pole brushless motor
  • Superior rotor design with kevlar wrapping
  • High purity copper windings making maximizes conductivity
  • Powerful sintered neodymium magnet
  • High torque and light weight
  • Powerful sintered neodymium magnet
  • 240 mm cable for more options



Details

Poles: 6
Power: 3000/3500W

Length:

72/75 mm

Diameter:

41,8 mm

Shaft:

5,0 mm

Weight:

385/425 g

Skrews:

4 x M3; 2 x M4

Hole pattern:

25,0 mm

Max. temperature of neodym:

180°C

Max. RPM:

55000





$#Bild7#$
